BAPS Hindu Mandir
Largest Hindu Mandir in the Southern Hemisphere
BAPS Hindu Mandir & Cultural Complex
Location: North Riding, Johannesburg
Scope: Full IT, Networking, Access Control & Surveillance Infrastructure
At the prestigious BAPS Hindu Mandir and Cultural Complex, Ithemba IT Services delivered a complete turnkey solution – from structured cabling and networking to access control, surveillance, and wireless infrastructure
Implementation Highlights

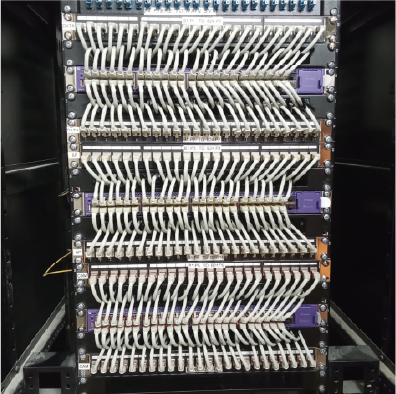

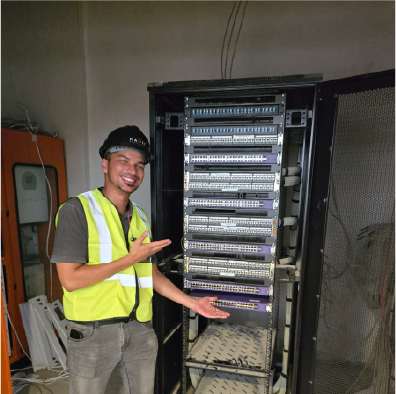

Structured Cabling
64 km of Global Six cabling installed by our certified team 7 km of perimeter fibre optics for robust network distribution
1. Certifications Achieved
To ensure the highest standards of quality, performance, and compliance, our team secured all necessary certifications before implementation. These accreditations reflect our commitment to delivering secure, future-ready infrastructure that meets both technical and industry requirements.
Network Extreme
Global Six
Axiz
Genetec – BMS
2. Access Control & Genetec Integration
We implemented a sophisticated access control system using Genetec software and hardware:
- Genetec Reader Board (in enclosure, fully terminated)
- HID Signo20 T Profile Readers (Black with Silver Trim)
- No-Touch Push-to-Exit (PTE) Sensors
- 300 kg Magnetic Locks with Brackets
- Heavy-Duty Door Contacts
- Emergency Exit Green Break Glass Units
- Structured Cabling: 4-Pair Mylar (0.5mm) and 5-Pair Cabling

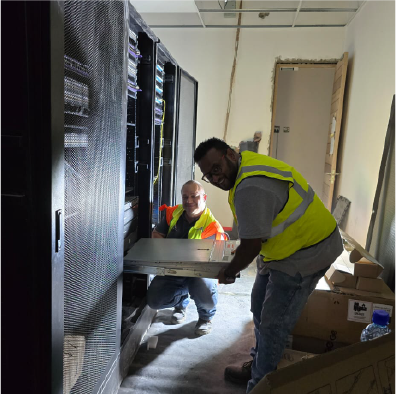

3. Networking & Wireless Infrastructure
Powered by Network Extreme Switches and Access Points, the site now enjoys seamless and secure connectivity across all buildings.
OS 7520-48Y Switches
10Gb and 40Gb Passive
DAC Modules
Indoor/Outdoor Wi-Fi APs
including AP3000 and AP5050U
External Mounting Kits
for durability
XIQ Pilot SaaS with 3-Year
Support
EW NBD AHR coverage for
hardware reliability

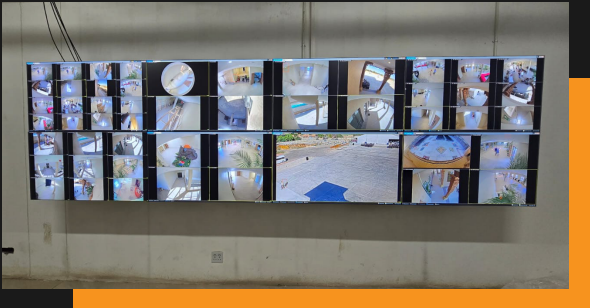

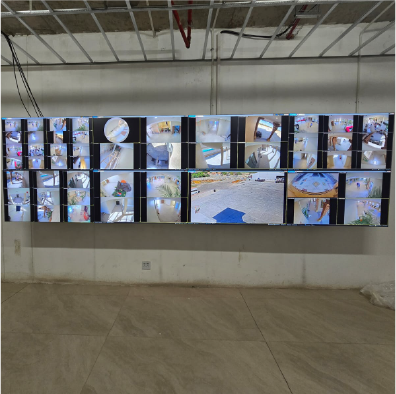

4. Advanced CCTV Surveillance system
To ensure full 360° coverage and high-performance monitoring throughout the BAPS Hindu Mandir premises, we deployed a comprehensive combination of indoor, outdoor, fixed dome, panoramic, and thermal cameras.
The installation includes DLPU-enabled AXIS P3267-LVE and P3268-LVE cameras, as well as the high-resolution AXIS P1388-B fixed box camera with 4K / 8MP capability. Panoramic surveillance is delivered by the AXIS P4707-PLVE and the AXIS P3818-PVE, offering expansive views with exceptional detail. For indoor use, compact and durable AXIS M4216-LV and M4218-LV mini domes were installed, alongside the vandal-resistant AXIS P9106-V corner-mounted unit.
The system also incorporates PTZ and thermal motion detection cameras provided by Axiz, as well as supportive hardware like the AXIS T91B50 telescopic ceiling mounts and T94N02D pendant kits to complete the installation.
